Description
Check out this great Bundle from CB Radio Supply. It includes a Mirage MX36HP3 10 Meter Radio, a DRX-9010 – Driver Extreme Premium External Speaker, and a DRX-6560 – Driver Extreme 4 Pin Noise Cancelling Dynamic Microphone!
Bundle Includes:

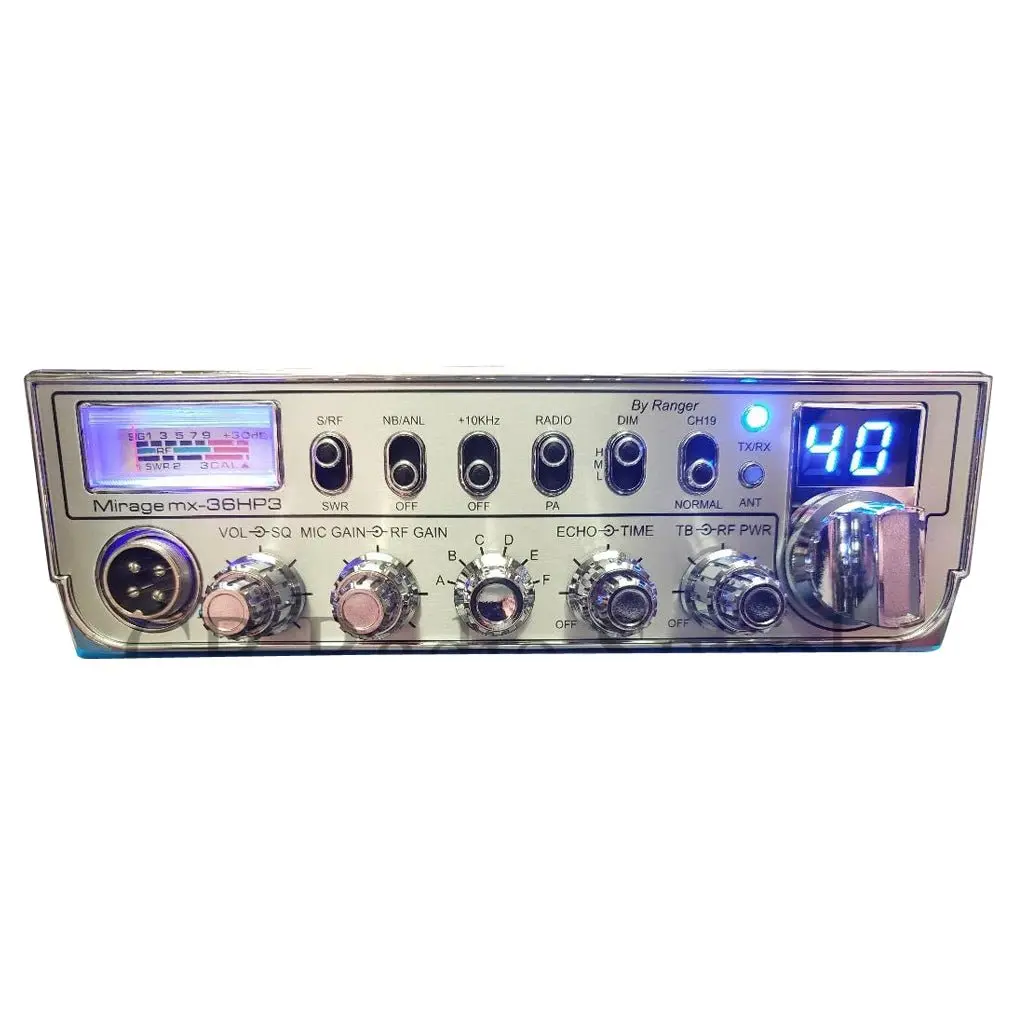

Mirage MX36HP3 10 Meter Radio
Features & Specs:
- Small Compact Size
- 45+ Watts PeP
- Front Panel Mic Jack
- Mic Gain
- RF Gain Controls
- Six-Band Selector
- Dual Echo
- Adjustable Talkback On/Off Controls
- Variable RF Power Control
- Small Meter with Scales for Signal Strength, Power, and SWR Output
- S-RF/SWR Switch
- ANL-NB/OFF Switch
- Public Address Capabilities
- RX/TX Indicator LED
- Antenna Warning LED
- Pro Tune and Alignment Recommended
- Receiver Upgrade Available
- 1 Year Manufacturers Warranty
- Height: 2 1/4”
- Width 7 3/8″
- Height 8 3/4″
DRX-9010 – Driver Extreme Premium External Speaker
Features & Specs:
- Design: Versatile wedge shape for flexible installation
- Mounting: Includes heavy-duty mounting bracket
- Speaker Cable: Detachable 10 ft. 20-gauge twisted pair, low inductance wire
- Power Handling: 15 watts nominal
- Impedance: 6 ohms
- Frequency Response: 150 Hz – 6 KHz linear response
- Operating Temperature: -4°F to +140°F
- Cord Plugs: 3.5mm straight to right angle
- Dimensions: 5.0 in. (W) x 4.5 in. (D) x 4.75 in. (H)
- Weight: 2 lbs. 5 oz. (including bracket & screws)
DRX-6560 – Driver Extreme 4 Pin Noise Cancelling Dynamic Microphone
Features & Specs:
- Ergonomic design and contoured switch for comfortable feel
- Rugged chrome plated grill
- Extra-long strain relief for durability
- High quality 9 foot cord
- Acoustically tuned for natural sound and clarity
- Internal diffuser to eliminate breath pops
- Internal diffuser to eliminate breath pops
Standard 4 pin 6 conductor wiring
Pin 1 (Ground) Shield & Blue
Pin 2 (Audio) White
Pin 3 (TX) Red
Pin 4 (RX) Black
Yellow wire is unused - Type: Dynamic noise cancelling system
- Sensitivity: -54 dB +/- 3dB (1V/Pa @1 KHz)
- Measurable impedance: 500 ohm’s +/- 30 ohm’s
- Frequency response: 55 Hz – 7 KHz (proximity effect compensated)
- No battery or power source required
As always, CB Radio Supply is your one-stop CB Shop. Feel free to contact us directly with any questions about this product or others we sell.
