TRAM/Browning BR-240 LMR-240 Coax Cable – 100-Foot High-Performance Base Station Cable

Description

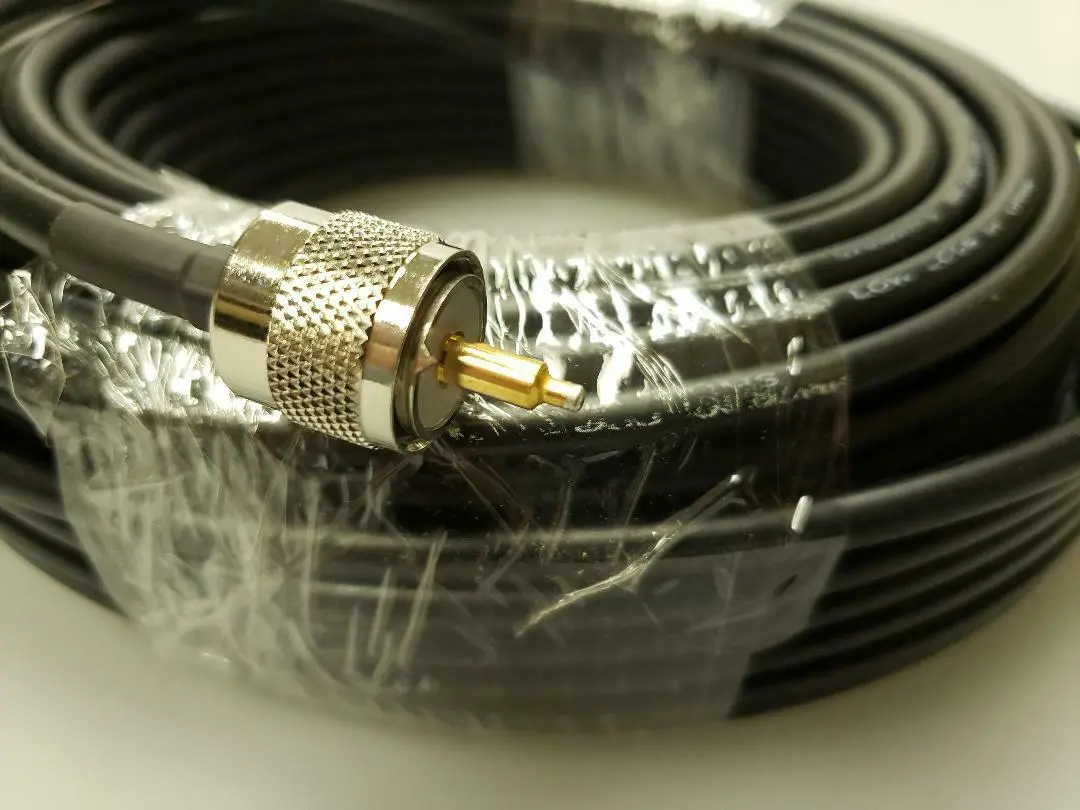

TRAM BROWNING BR 240 LMR240 Type 100 ft CB, Ham Radio Base Coax Cable

Low Loss LMR240 Type, 100 FOOT, Coaxial Cable for CB Radio

WITH Nickle Plated PL-259’s and gold plated contact pin

Description:

This is a “RG-8X” size version of the popular LMR-240 type low loss coax. The cable has a characteristic impedance of 50 Ohm.

Most two-way radio communication systems, such as marine, CB radio, amateur, police, fire, WLAN antennas etc., are designed to work with a 50 Ohm cable.

BR-240 cable is to be used in a “single antenna” installation only.

Tram-Browning: Quality Workmanship and Materials – Exceptional Performance and Function – Expert Engineering

Features and Specifications:

• LMR-240 Type Cable
• Low Loss RG-8X Type Cable
• Braided Cable
• 0.240 Inch Diameter
• Solid Bare Copper Center Conductor
• High Velocity Gas-Injected Foam Dielectric – 84%
• 100% Shield Coverage – 95% Tinned Copper Braid plus Bonded Aluminum Tape
• Use BR-240 Crimp Connectors Only
• Color: Black

Attenuation and Average Power Rating
Frequency MHz	Attenuation dB/100 ft.	Attenuation dB/100 m	Avg. Power kW
30	1.3	4.4	1.49
50	1.7	5.7	1.15
150	3.0	9.9	0.66
220	3.7	12.0	0.54
450	5.3	17.3	0.38
900	7.6	24.8	0.26
1500	9.9	32.4	0.20
1800	10.9	35.6	0.18
2000	11.5	37.7	0.17
2500	12.9	42.4	0.15



Electrical Specifications

Maximum Frequency	16.2 GHz
Velocity of Propagation	84%
DC Breakdown	1,500 Volts
Peak Power Rating	5.6kW
DC Resistance Inner Conductor, ohms	3.2/1,000′
DC Resistance Outer Conductor, ohms	3.89/1,000′
Jacket Spark – volts RMS	5,000
Impedance	50 ohms
Capacitance	25.12 pF/ft.
Inductance	0.061 uH/ft.
Shielding Effectiveness	> 90 db
Phase Stability	< 10 ppm/C
