Description
Check out this great Bundle from CB Radio Supply. It includes a Uniden PC78LTX CB Radio, a DRX-9010 – Driver Extreme Premium External Speaker, and a DRX-6560 – Driver Extreme 4 Pin Noise Cancelling Dynamic Microphone!
Bundle Includes:

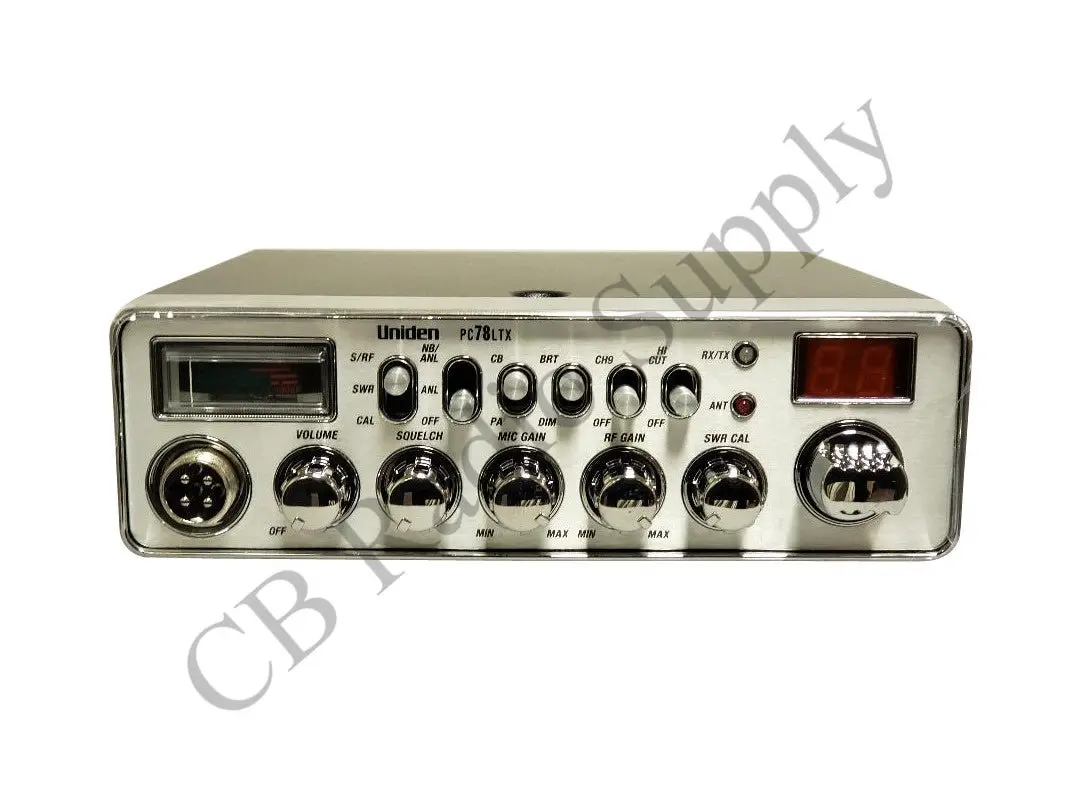

Uniden PC78LTX
Features & Specs:
- AM Only
- High-Contrast Front Panel
- PA Capability
- Integrated SWR Meter
- Noise Reduction
- RF Gain
- Manufacturers Warranty 2 Years
- Pro Tune and Alignment Recommended
- Talkback Upgrade Available
- Length 8”
- Width 2.5″
- Height 2.5″
DRX-9010 – Driver Extreme Premium External Speaker
Features & Specs:
- Design: Versatile wedge shape for flexible installation
- Mounting: Includes heavy-duty mounting bracket
- Speaker Cable: Detachable 10 ft. 20-gauge twisted pair, low inductance wire
- Power Handling: 15 watts nominal
- Impedance: 6 ohms
- Frequency Response: 150 Hz – 6 KHz linear response
- Operating Temperature: -4°F to +140°F
- Cord Plugs: 3.5mm straight to right angle
- Dimensions: 5.0 in. (W) x 4.5 in. (D) x 4.75 in. (H)
- Weight: 2 lbs. 5 oz. (including bracket & screws)
DRX-6560 – Driver Extreme 4 Pin Noise Cancelling Dynamic Microphone
Features & Specs:
- Ergonomic design and contoured switch for comfortable feel
- Rugged chrome plated grill
- Extra-long strain relief for durability
- High quality 9 foot cord
- Acoustically tuned for natural sound and clarity
- Internal diffuser to eliminate breath pops
- Internal diffuser to eliminate breath pops
Standard 4 pin 6 conductor wiring
Pin 1 (Ground) Shield & Blue
Pin 2 (Audio) White
Pin 3 (TX) Red
Pin 4 (RX) Black
Yellow wire is unused - Type: Dynamic noise cancelling system
- Sensitivity: -54 dB +/- 3dB (1V/Pa @1 KHz)
- Measurable impedance: 500 ohm’s +/- 30 ohm’s
- Frequency response: 55 Hz – 7 KHz (proximity effect compensated)
- No battery or power source required
As always, CB Radio Supply is your one-stop CB Shop. Feel free to contact us directly with any questions about this product or others we sell.
